Radiance

Size(mm)(W*H): 600 * 337.5 / 600 * 675
Brightness: 600nits ~ 1000nits
PixelPitch(mm): 0.78, 0.93, 1.25, 1.56, 1.87
LED Panel Tech: Flip-Chip Mini-LED COB (Direct-View LED)

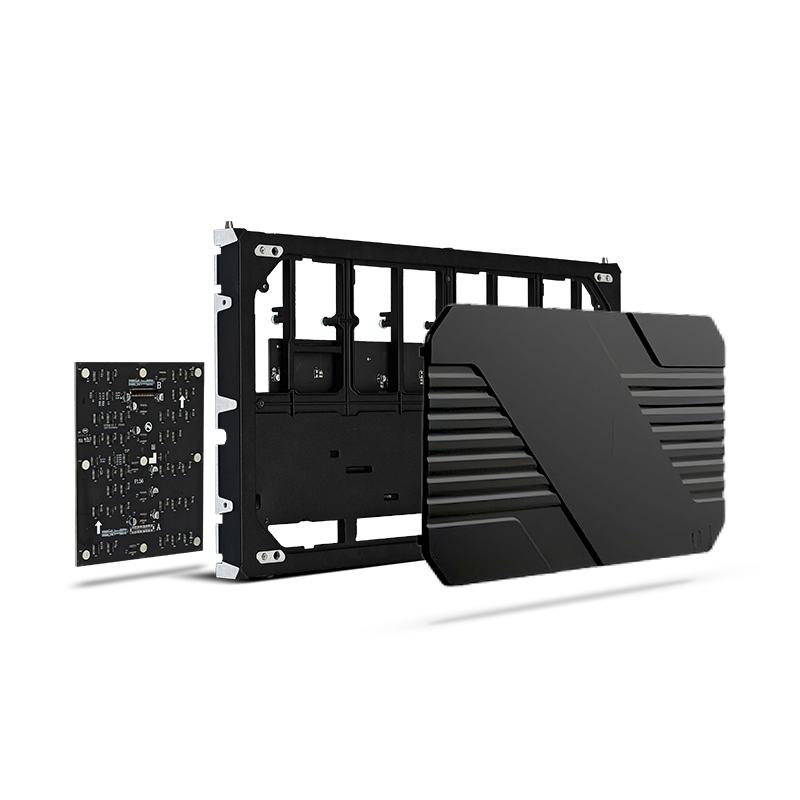

Structure: Die-Casting Aluminum
Environment: Indoor, Temp -20℃~60℃, RH 0%~90%

The Radiance COB series is a standard 16:9 display screen designed for indoor ultra-high-definition display needs. It is available in two sizes: 600*337.5mm and 600*675mm. The product uses a flip-chip mini-LED and a COB process panel, with a contrast ratio of 10000:1 and a refresh rate of 3840~7680Hz. The product adopts a wireless hard-connect design for electrical components, and a 3-in-1 integrated design for PSU, receiving card, and HUB. The product display panel is moisture-proof, scratch-proof, and anti-static, making it the best choice for harsh indoor environments.

Product Advantages

All-in-One, Plug and Play

No assembly, no wiring, free-standing and power on, showtime starts

2 : 1 Wider Visual Content

960mm frame width unlocks more possibilities of contents&programs

Compact Design, Less Space Occupation

40cm depth basement, a small space to release great excitement

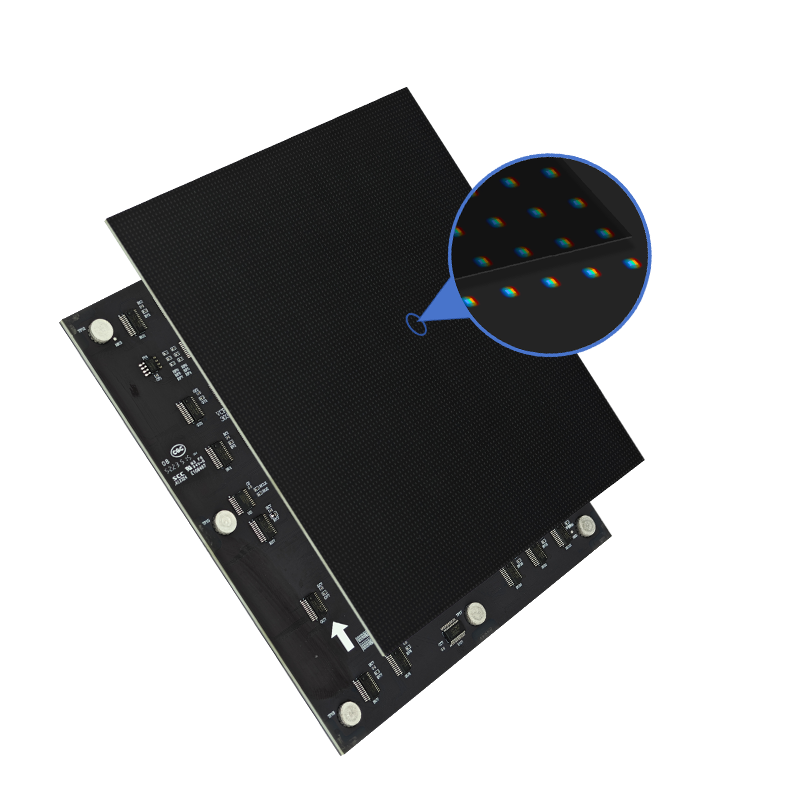

Flip-chip Mini-LED COB Panel(Direct View LED)

Adopting full flip chip COB technology, modules display a uniform and consistent ink color.

Minimalistic Frame Design

ADC frame design, Ultra-thin 39.5mm thickness,ultra-light 4kg/7.9kg weight

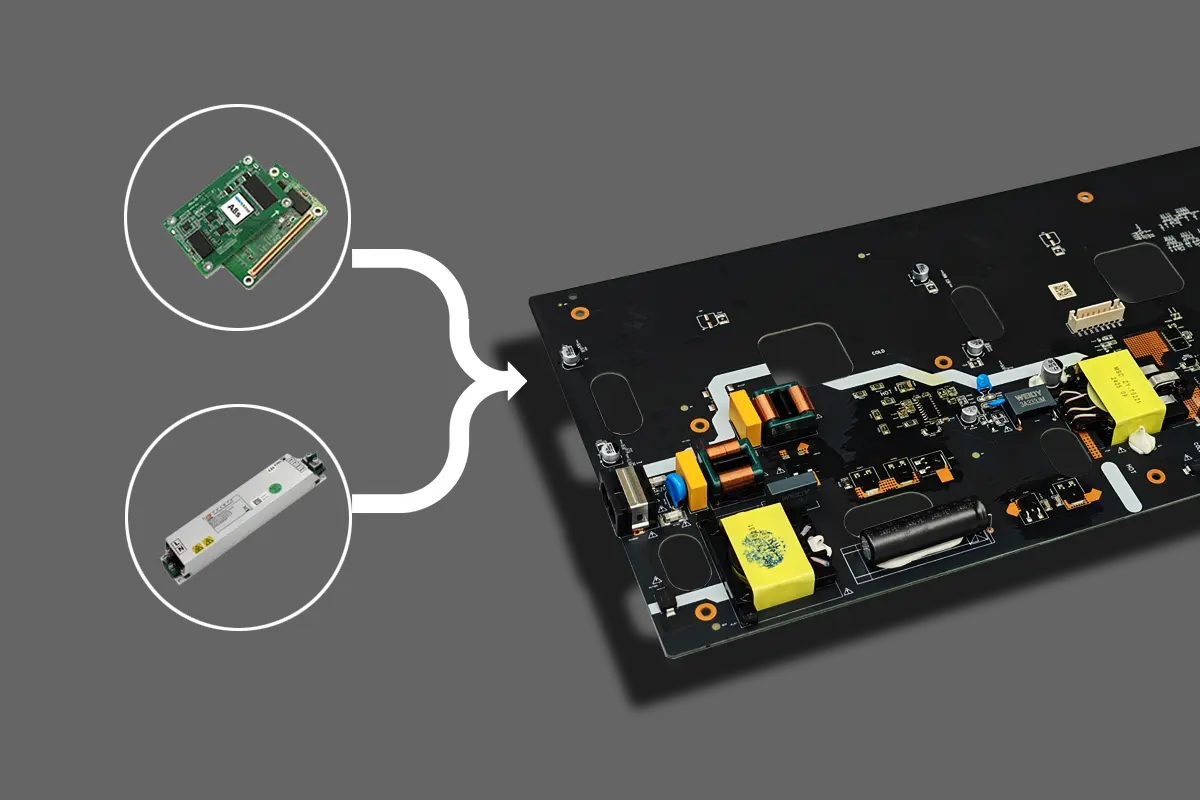

3 In 1 Integrated HUB System

Adopting full flip chip COB technology, modules display a uniform and consistent ink color.

A Variety of Management and Publishing Modes are Available

Supports multiple modes of communication, LED poster management and program publishing, including USB hot-swap, on-site hotspot direct publishing and Internet remote publishing.

Playback Independently of Each Other

Multi-Posters’ Synchronous Timing Playback

Multi-Posters’ Splicing

Muiltiple Playback Modes

Application Scenarios

Specification

	A960-1.2	A960-1.5	A960-1.8	A960-2.0	A960-2.5
Pixelpitch	1.2mm	1.5mm	1.8mm	2.0mm	2.5mm
LED model	SMD3in1
Display Size	960(W) x 1920(H)mm
Full Dimension	980(W) x 2065(H) x 400(D)mm
Full Resolution(pixel)	768x1536	624x1248	516x1032	480x960	384x768
Weight(kg)	58
Brightness(nit)	800+
Refresh Rate(Hz)	3840
Power Input	VAC100~240V
Rated power	900W/set
Protection Grade	IP31
Control System	NOVA/HUIDU Andoid11.0 System
Control Method	Offline Asynchronous
Communication	USB Flash/RJ45/WIFI/4G
Control Software	NOVA/HUIDU

Statement: The relevant parameters in the table are subject to real-time update, and the data is for reference only. Upgrade will be made without further notice.
